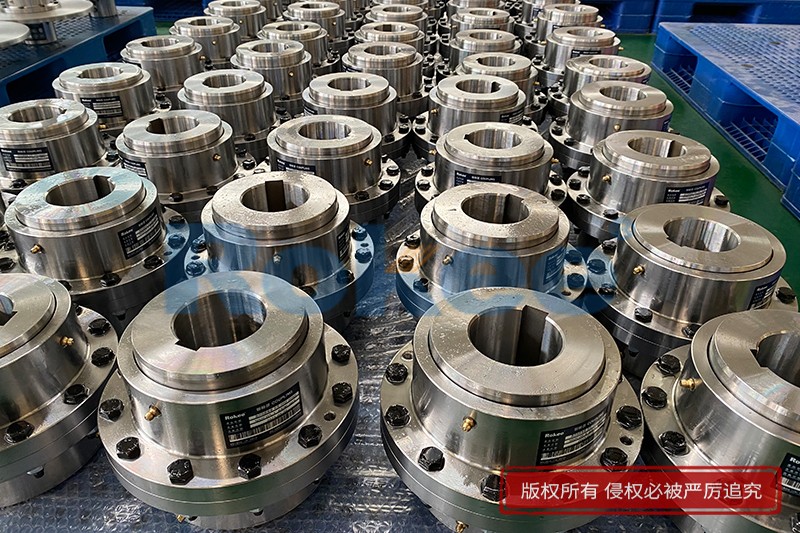

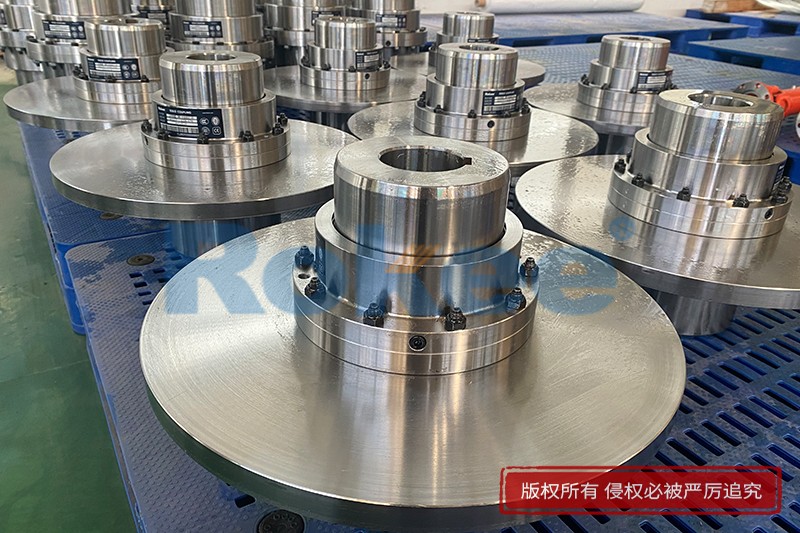

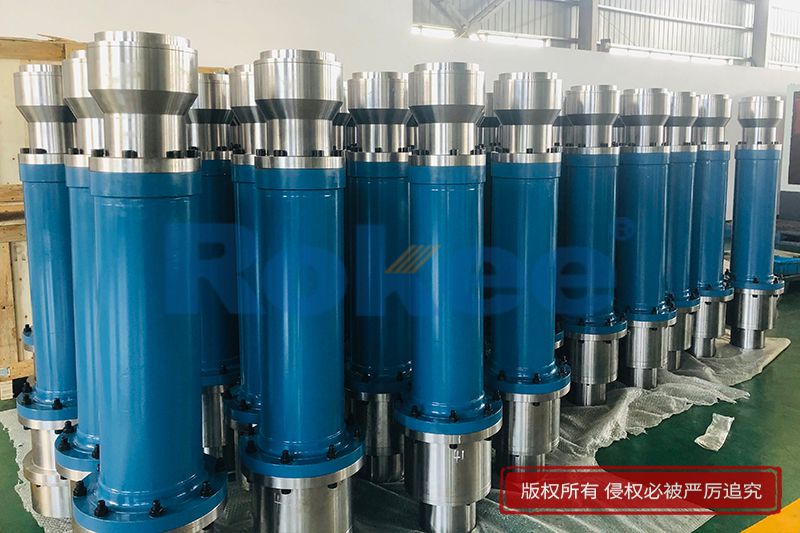

ROD鼓形齒式聯軸器是Rokee獨立開發的核心技術傳動產品之一并且在國家建立和報備了企業技術標準，結合了日本，德國等先進國家的鼓型齒聯軸器標準技術，優化(hua)(hua)了很多細部(bu)尺寸鏈(lian)，采用(yong)了大壓力(li)角齒形設計，軸孔采用(yong)短軸設計，縮(suo)小了長徑比(bi)，結構更加緊湊，轉(zhuan)速(su)性(xing)能(neng)優異。相近型號的螺(luo)栓(shuan)采用(yong)標準統一(yi)化(hua)(hua)，零部(bu)件通用(yong)性(xing)好(hao)。

與國家標準齒式聯軸器相比能夠傳(chuan)遞更大(da)的扭矩，質量(liang)(liang)相對大(da)幅度減輕，轉動(dong)慣量(liang)(liang)小，符合歐洲防爆要求(qiu)，各種綜合性能大(da)大(da)超前。為了更好(hao)的傳(chuan)動(dong)性能，我(wo)們強烈推薦您選用。

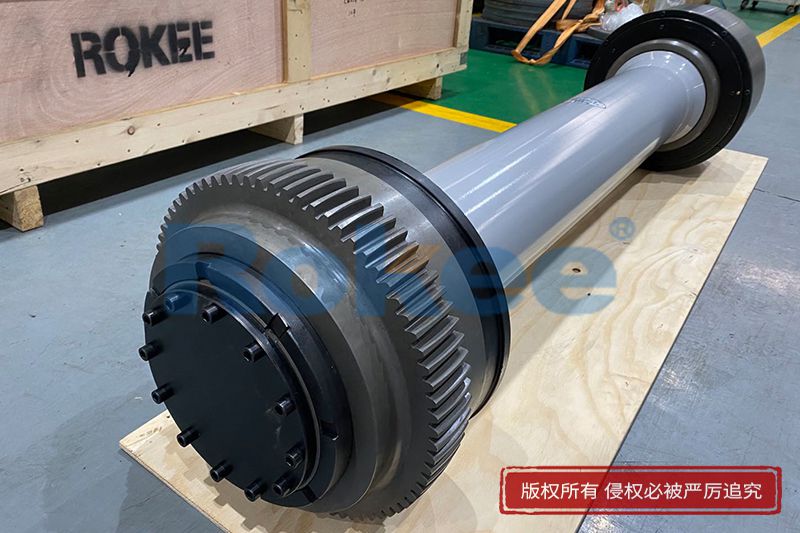

鼓型齒式聯軸器是一種特別設計的先進齒式聯軸器，其外齒制成球面，球面的中心在齒輪的軸線上，齒側的間隙比一般產品稍大，鼓形齒聯軸器可以傳遞較(jiao)大(da)的(de)扭矩和(he)允許較(jiao)大(da)的(de)角位(wei)移，性能優異且壽命更加(jia)長久。

As the gear type flexible coupling, it can be applied into various general drive sites. Due to the special hook face drum gear design, in the definitive deviation scope, it can effectively avoid the edge stress concentration at tooth meshing, so it has outstanding radial and angular centering capacity. Moreover, it can ensure long service life. ROD series drum gear coupling is one of Rokee’s core technical products. It has compact and reasonable structure, light weight, small hole-position fitting draw ratio, large pressure angle design, accurate centering and excellent speed performance. The bolt design has been standardized in series, the universality of parts is good and its service life far exceeds the one of domestic products.

The gear sleeve at both sides is in the structure of locating ring and uniform parts are used. In addition, the sealing is excellent and easy. Curved-tooth Gear Couplings are applied with larger pressure angle design. The product design is more reasonable and quality is reliable. The gear backlash is reasonable. All ROD series drum type gear couplings are designed in optimization, the structure is more compact and the proportion of hole diameter and length is more coordinated and reliable. Light weight and small rotational inertia. It’s made of high-quality alloy forged steel. It’s very applicable to the sites with anti-explosion requirements. The bolt size of adjacent models is the same and the installation is more convenient. Gear Coupling parts of same model can be exchanged for installation.

蛇形彈簧聯軸器是一種(zhong)結構先進的(de)(de)金屬聯(lian)軸(zhou)(zhou)器(qi)，它靠蛇形(xing)(xing)彈簧片來傳遞扭矩，蛇形(xing)(xing)彈簧聯(lian)軸(zhou)(zhou)器(qi)是軸(zhou)(zhou)聯(lian)接傳動(dong)部件，也(ye)是一種(zhong)非常(chang)通用(yong)的(de)(de)軸(zhou)(zhou)聯(lian)接傳動(dong)部件。蛇簧聯(lian)軸(zhou)(zhou)器(qi)承受扭矩較大，適用(yong)于重型(xing)機械(xie)及通用(yong)機械(xie)場合。這種(zhong)經過特殊(shu)工(gong)藝處的(de)(de)蛇形(xing)(xing)彈簧，具(ju)有很長的(de)(de)使用(yong)壽命(ming)(ming)　允許(xu)轉速較高，在軸(zhou)(zhou)向、徑向和角向具(ju)有良好的(de)(de)補償能力。結構簡單；拆(chai)裝方(fang)便，使用(yong)壽命(ming)(ming)長；減振(zhen)效果好，避(bi)免了共振(zhen)。

蛇形聯軸器共有九類型(xing)(xing)(xing)式，分別是JS罩殼徑向安(an)裝(zhuang)型(xing)(xing)(xing)（基(ji)本型(xing)(xing)(xing)）、JSB罩殼軸向安(an)裝(zhuang)型(xing)(xing)(xing)、JSS雙法(fa)蘭聯接(jie)型(xing)(xing)(xing)、JSD單法(fa)蘭聯接(jie)型(xing)(xing)(xing)、SJS接(jie)中間軸型(xing)(xing)(xing)、JSG高速型(xing)(xing)(xing)、JSZ帶(dai)(dai)制(zhi)動(dong)輪型(xing)(xing)(xing)、JSP帶(dai)(dai)制(zhi)動(dong)盤型(xing)(xing)(xing)、JSA安(an)全型(xing)(xing)(xing)等(deng)。

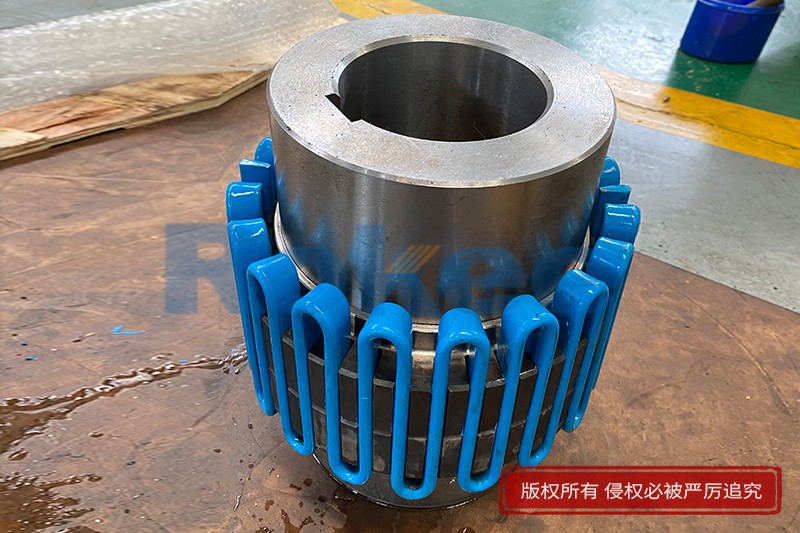

蛇簧聯軸器其主要結構是由兩個半聯軸節，兩個半外罩，兩個密封圈及蛇形彈簧片組成。它是靠蛇簧嵌入兩半聯軸節的齒槽內來傳遞扭矩，聯軸器以蛇形彈簧片嵌入兩個半聯軸節的齒槽內，來實現主動軸與從動軸的鏈接。蛇型彈簧聯軸器運(yun)轉時(shi)，是靠主動端(duan)(duan)齒(chi)面對蛇簧的(de)(de)軸向作用力帶動從動端(duan)(duan)，來(lai)傳(chuan)遞(di)扭矩(ju)(ju)，如此在(zai)很大程度上避免了共(gong)振(zhen)現(xian)象發生，且簧片在(zai)傳(chuan)遞(di)扭矩(ju)(ju)時(shi)所產生的(de)(de)彈(dan)性變量(liang)，使(shi)機械(xie)系統能獲得較好的(de)(de)減(jian)振(zhen)效果(guo)，其(qi)平均減(jian)振(zhen)率達36%以上。
